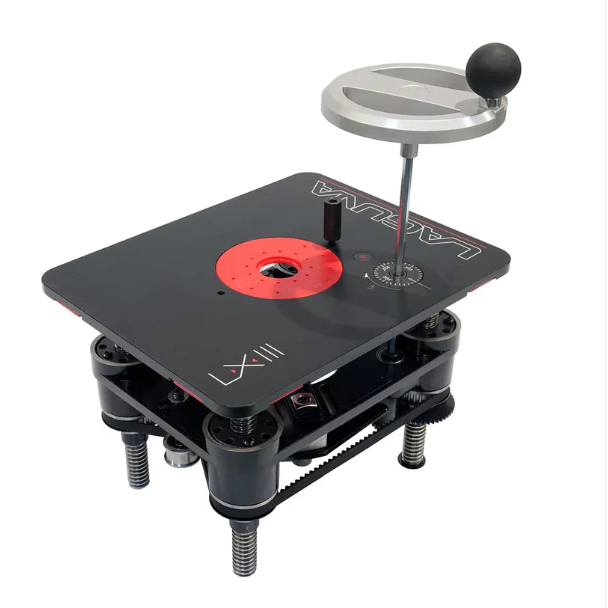

Laguna LXIII Router Lift
$699.00
SKU Laguna LXIII
The Laguna LX3 Router Lift sets a new standard for precision and ease of use in router table setups. Designed to fit standard router table openings, the LX3 features an ultra‑clean anodized aluminum top plate, four heavy‑duty lift posts, and a precision handwheel for smooth, accurate height adjustments. Built to handle a wide range of routers without spacers, the LX3 delivers stability, accuracy, and convenience for demanding routing tasks.
Features:
- Anodized aluminum top plate with clean, hole‑free upper surface
- Fits standard 9‑1/4" x 11‑3/4" router table openings
- Magnetic insert rings with push‑button, tool‑free removal
- Adjustable leveling screws for flush insert ring alignment
- Four heavy‑duty 3/4" Acme‑threaded lift posts for stability

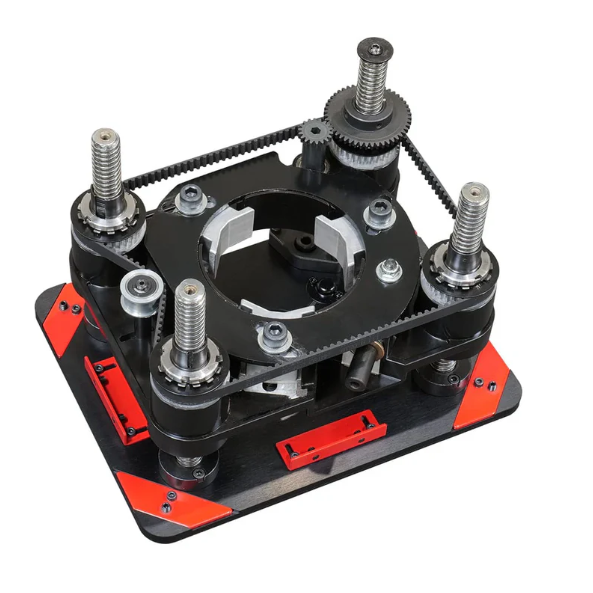

- Timing‑belt‑driven geared lift mechanism for smooth operation
- Precision 5" handwheel for easy height adjustment
- Fine adjustment scale for precise bit positioning
- 3‑jaw adjustable clamping system handles a wide range of routers
- Four‑corner leveling pads for stable installation
- Side tensioners help reduce vibration and ensure proper fit
- Threaded top accepts included starter pin for template routing
Specifications:
- Top Plate Size: Fits 9‑1/4" x 11‑3/4" openings
- Top Plate Thickness: 3/8"
- Top Plate Material: Anodized aluminum
- Lift Posts: Four 3/4" Acme‑threaded posts
- Height Adjustment: 1/16" per full revolution
- Adjustment Scale: 1/512" increments (approx. 0.002")
- Router Diameter Capacity: 3"–4.3"
- Vertical Travel: 4.9"
- Insert Rings Included: 3
- Leveling System: Four‑corner leveling pads
- Clamping System: 3‑jaw adjustable clamp
